Ultra Sand Wash Plant

XS series ultra sand wash plant is a combination of linear screen, cyclone and scrubber module, the product features include sand washing, fine sand recovery, dewatering and desliming, concentration and grading, etc., which can effectively remove sand impurities, and get clean and very low moisture content of high-quality sand and gravel aggregate.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Capacity(t/h) Scrubber Spec (mm) Hydrocyclone (mm) Screen Spec (mm)
XS50 50 CX2-1 550 1530
XS100 100 CX2-2 660 1848
XS150 150 CX3-1 710 2448
XS200 200 CX3-2 2*660 3060
XS250 250 CX4-1 2*660 3660
XS300 300 CX4-2 2*710 4272

Details Introduction

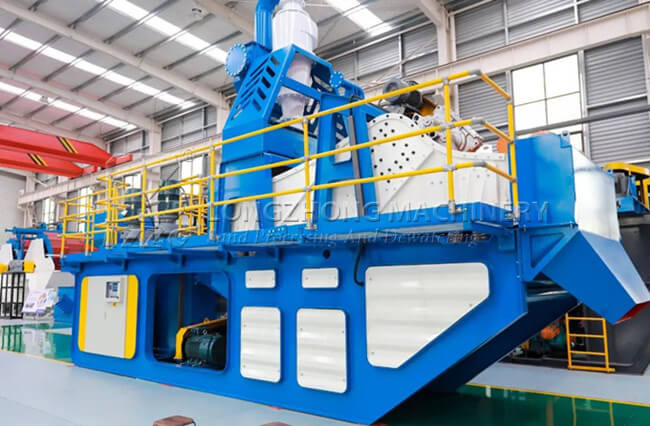

XS series ultra sand wash plant is a combination of linear screen, cyclone and scrubber module, the product features include sand washing, fine sand recovery, dewatering and desliming, concentration and grading, etc., which can effectively remove sand impurities, and get clean and very low moisture content of high-quality sand and gravel aggregate.

The equipment fully combines the functional characteristics of multiple equipment to achieve the replacement of the previous line of multiple equipment with one equipment.

For the sand and gravel aggregate production enterprises to achieve greater economic benefits to provide a strong guarantee.

ultra-sand-wash-plant

Working Principle

The mixed material firstly enters into the scrubber for full scrubbing, and then enters into the water tank under the screen through the chute, and enters into the cyclone through pumping, and cleans and controls the water of the material under the action of centrifugal force, so as to achieve the effect of separating the mud and sand.

The underflow material of the cyclone enters the coarse sand dewatering area of the linear screen for dewatering; while the overflow material enters the water tank through the return pipe for circulating cleaning and replenishing the water tank, thus realising efficient sand washing.

Performance Advantages

1. One-piece installation structure, grille-type walkway steps, fully spliced guardrail, convenient and flexible.

2. All over-flow parts are sprayed with 5mm wear-resistant polyurethane material to reduce the wear and tear of the equipment.

3. Intelligent PLC control system for precise flow control and liquid level control, realising intelligent production.

4. The shell adopts 8mm thick steel plate and the inner lining adopts 95 wear-resistant ceramics, which makes the equipment more wear-resistant.

5. Upgraded chamber type exciter, can be adjusted by adding or subtracting the counterweight block or replacing its position to adjust the excitation force and the size of the direction angle.

6. The design parts are completely according to the export standard 40 feet container design, can be boxed and sent to all over the world.

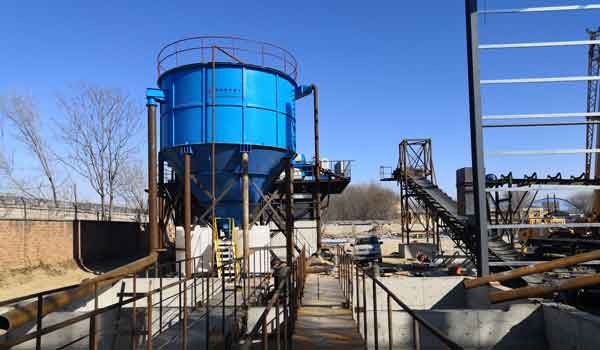

Related Case
