How Much Is The Equipment For Fracturing Sand Washing Plant

How much is the equipment for fracturing sand washing plants? This is a question that many customers will consult. A fracturing sand washing plant requires a sand washer, a fine sand recovery machine, and a thickening tank, and their prices are as low as 100,000 U.S. dollars. A single oil fracturing sand production line (50t/h) is divided into five working stages, which are the raw material mining phase, the raw material drying and pre-screening phase, the raw material washing phase, the concentrate drying phase, and the finished product screening and packaging phase. The specific equipment required depends on the user’s operating conditions, operating environment, infrastructure settings, and investment budget to tailor the oil fracturing sand washing production line plan.

Fracturing sand washing line process

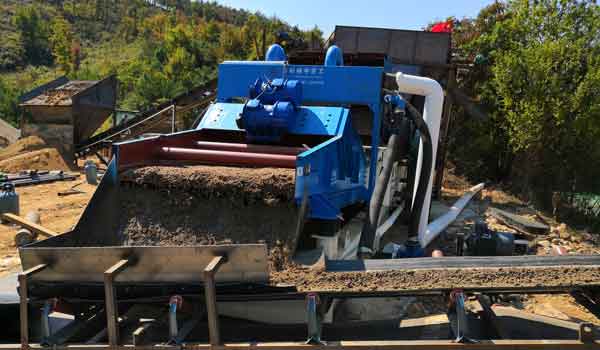

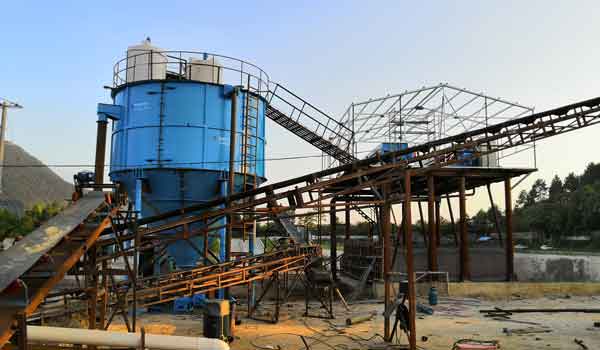

The fracturing sand after magnetic separation enters the sand washing and recycling machine. The sand washing plant rotates to stir the materials in the washing box for cleaning operations, which can remove impurities covering the surface of the materials. After cleaning, the coarse-grained materials are sent to the dewatering screen for dewatering by the dredging wheel. The tailwater is pumped into the separator by the slurry pump, and the sediment is separated by the separator. After the recovery, the fine material is discharged to the screen surface of the dewatering screen and the coarse material is uniformly mixed and dewatered before being discharged. At the same time, the sludge water suspension treated by the separator is discharged into the sewage tank, and then the tailwater is pumped from the sewage tank into the thickening tank for the mud-water separation operation. The concentrated mud is pumped into the plate and the frame filter press through the bottom of the filter tank to achieve a dry pile. After pressure filtration, the clean water enters the clean water pool to realize the recycling of clean water.

Fracturing sand washing line advantage

1. The fracturing sand production line has the advantages of large output, high efficiency, stable operation, and round product size.

2. The production line has round sand granularity, high compressive value, and reliable quality.

3. The entire production line process realizes material washing, tailwater purification, and dry discharge of solid waste, which can achieve zero discharge.

4.The fracturing sand production line is highly targeted. For oil fracturing sand research and development production lines, the equipment can be configured according to customer conditions.

Fracturing sand washing plan and price

Option 1: Feeder + Mud Dewatering Machine + Spiral Sand Washer + Vibrating Screen + Conveyor

Reference price ≥300,000

Features: The production process is simple, easy to operate, and low input cost.

Option 2: Feeder + Mud Dewatering Machine + Spiral Sand Washer + Wheel Sand Washer + Vibrating Screen + Conveyor

Reference price ≥ 500,000

Features: The production line is suitable for large raw materials and high discharge requirements.

Option 3: Mobile Mud Dewatering Machine + Mobile Spiral Sand Washer

Reference price ≥ 600,000

Features: This production line is suitable for unfixed sites, integrated units, small footprint, and saves raw material transportation costs.

How much is a set of fracturing sand washing equipment? The quotations on the market range from about 300,000 to 1 million, which are mainly related to the selection of manufacturers, configuration schemes, and equipment models. Different design schemes have different output and discharge particle sizes, and they are also different in raw materials, processes, and business models. , So there will be a certain gap in the price. LZZG has a sales manager to serve you and customize the investment plan for you within your budget.
